Pyshield AC 系列气凝胶涂料
HUALU Pyshield AC Series是由SiO2气凝胶粉体与乳液、粘结剂复合制成，具有绝热、隔音、防水等特性的新型涂料。
基本信息
| 气凝胶涂料 (建筑领域 ) Aerogel Coating (Building Field) |
HUALU Pyshield AC-JZ-01N01 |
气凝胶内墙 保温涂料(净味型) Interior Aerogel Thermal Insulation Coating(Low-Odor Type) |
应用于夏季潮湿及沿海地区，内墙防霉、防潮、 部分隔音、防结露、保温隔热等。 Applied to areas with severe seasonal temperature changes and coastal regions, interior wall insulation, moisture-proofing,sound insulation, mildew prevention, anti-condensation,and thermal insulation. |
| HUALU Pyshield AC-JZ-01W01 |
气凝胶外墙 隔热涂料 Exterior Aerogel ThermalInsulation Coating |
应用于建筑外墙，夏热日照强烈地区 降低建筑温度。 Applied to building exterior walls,summer heat and strong sunlight regions, to reduce building temperature. |
| 气凝胶涂料 (工业领域 ) Aerogel Coating (Industrial Field) |
HUALU Pyshield AC-GY-01H200 |
气凝胶节能 防烫涂料 Aerogel Energy-Saving Heat-Resistant Coating |
应用在0~200℃管道中带温施工 达到优异节能性能同时，起到防烫的目的， Applied In 0~200°C pipeline with temperature construction.Achieve excellent energy-saving performance and anti-scald at the same time |
| HUALU Pyshield AC-GY-01L200 |
气凝胶保冷 防结露涂料 Aerogel Cold Insulation and Anti-Condensation Coating |
应用在工业管道防结露及冷凝水的处理方面，较传统的材 料安装工艺简单，后期维护方便。 It is used in the treatment of industrial pipeline anti-condensation and condensate water,which is simpler than the traditional materal installation process and easy for maintenance. |
 |
 |
技术参数
|
性能指标 |
HUALU Pyshield AC-JZ-01W01 |
HUALU Pyshield AC-JZ-01N01 |
HUALU Pyshield AC-GY-01H200 |
HUALU Pyshield AC-GY-01L200 |
参考标准 |
| 颜色 Color |
白色(可调) White(Adiustable) |
白色(可调) White(Adiustable) |
白色(可调) White(Adiustable) |
白色(可调) White(Adiustable) |
目测 Visual |
| 导热系数 Thermal Conductivity |
≤0.042 W/(m·K) @25℃ |
≤0.040 W/(m·K) @25℃ |
≤0.035 W/(m·K) @25℃ |
≤0.032 W/(m·K) @25℃ |
GB/T 10295-2008 |
| 密度 Density |
550+30kg/m³ |
540±30kg/m³ | 540+30kg/m³ | 580±20kg/m³ | GB/T 6750-2007 |
| 粘结强度 Adhesion Strength |
≥0.6MPa | ≥0.6MPa | ≥0.6MPa | ≥0.6MPa | JG/T 24-2018 |
| 防火等级 Fire Rating |
B2 | B2 | B1 | B1 | GB 8624-2012 |
| VOC含量 VOC Content |
合格(≤100g/L) Qualified |
合格(≤100g/L) Qualified |
合格(≤100g/L) Qualified |
合格(≤70g/L) Qualifed |
GB 18582-2008 |
| 柔韧性 Flexibility |
直径100mm无裂纹 Diameter 100mm No Cracks |
直径100mm无裂纹 Diameter 100mm No Cracks |
直径50mm无裂纹 Diameter 50mm No Cracks |
直径100mm无裂纹 Diameter 100mm Nocracks |
GB/T 1731-2020 |
| 长期使用温度 Long-term ServiceTemperature |
<120℃ | <150℃ | <150℃ | -40~70℃ | / |
产品应用
- 建筑内/外墙保温、隔音、防结露、节能。
- 屋顶隔热，避免太阳光直射。
- 彩钢房隔热体系。

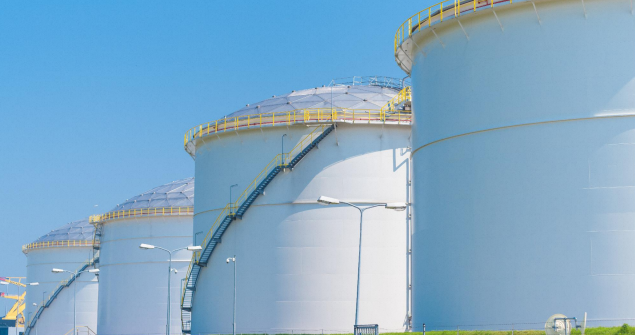

- 异形罐体保温和节能。
- 管道及异型件隔热和防腐节能。
- 工业管道防结冰及防冷凝水。
- 汽车引擎盖、排气管等高温部件的隔热保护。
