气凝胶非膨胀型钢结构防火涂料 GT-WSF-Ft2.50-HUALU Pyshield AC-GY-H1000

气凝胶非膨胀型钢结构防火涂料是单组分自水硬型气凝胶无机涂料，气凝胶微粉与无机胶黏剂及填料完美结合，最大的保留了气凝胶纳米孔结构和优越的隔热保冷性能，并具有耐老化、防火、耐高温(1000℃)等特性，对多种金属、非金属材料有良好的粘结性。

ꄴ上一个：无

ꄲ下一个：气凝胶隔热抗石击涂料 HUALU Pyshield AC-GY-02KSJ01

产品优势

1.毫米级涂覆，即可提供2.5小时的耐火极限
2.长时间有效阻隔1000℃以上的高温，远超传统涂料
3.持久疏水，防潮防霉
4.卓越的防腐耐候性
5.超薄厚度，重量极轻
6.施工便捷，适应性强

产品参数

项目

ltem

参数

Parameter

颜色

Color

灰白色

Gray-white

导热系数

Thermal Conductivity

≤0.065 W/(m·k)@25℃

干密度

Dry Density

≤0.65 g/cm3

粘结强度

Bond Strength

≥0.1 MPa

抗压强度

Compressive Strength

≥0.5 MPa

耐火极限(烃类火)

Fire Resistance(Hydrocarbon Fire)

33 mm≥2.5h

最高使用温度

Maximum Service Temperature

1000℃

耐盐雾腐蚀性

Salt Spray Corrosion Resistance

30次隔热效率衰减量≤35%

≤35% efficiency loss after 30 cycles

耐紫外线辐照性

UV Radiation Resistance

60次隔热效率衰减量≤35%

≤35% efficiencyloss after 60 cycles

规格

Specification

10 Kg/20 Kg

用量

Usage

0.6(kg/mm/㎡)

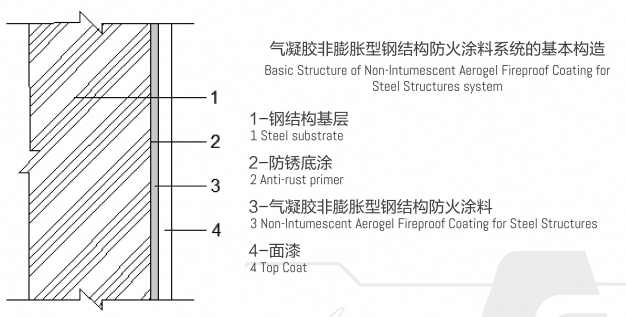

涂层设计结构

项目 ltem		参考厚度(mm) Reference Thickness(mm
防锈底涂 Anti-rust primer		<0.5 mm
气凝胶非膨胀型钢结构防火涂料 Non-Intumescent Aerogel Fireproof Coating for Steel Structures		≥15 mm
面漆 Top Coat		按需 As required

产品应用

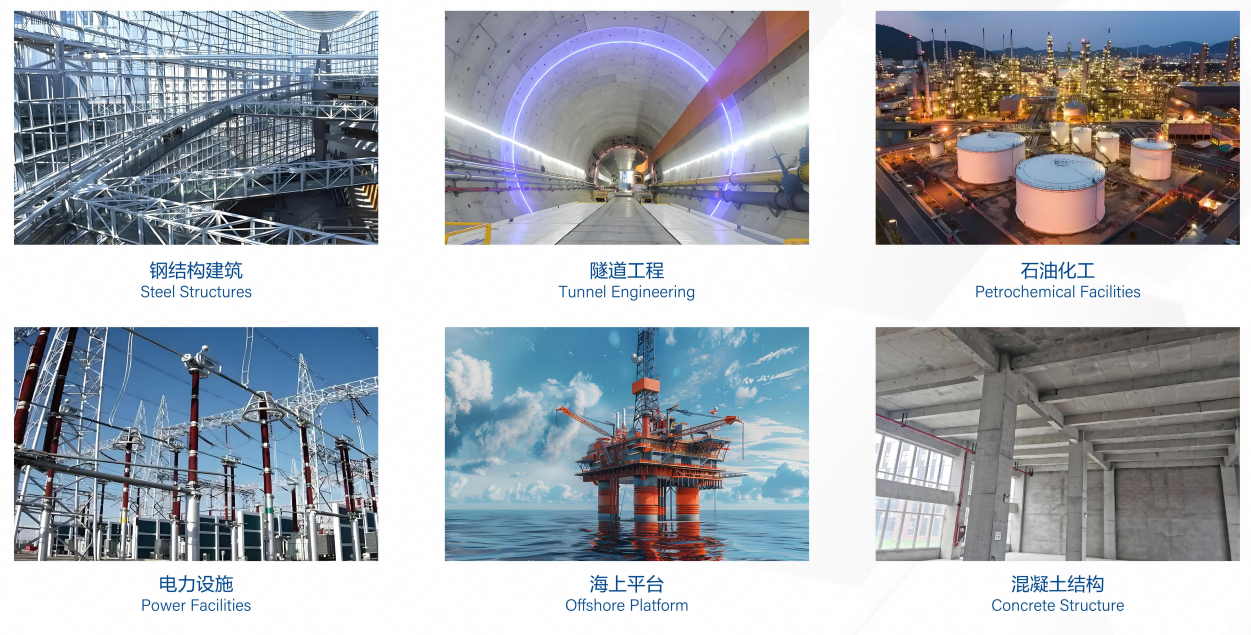

气凝胶非膨胀型钢结构防火涂料应用于钢结构建筑、混凝土结构、石油化工、隧道工程、电力设施、船舶与海上平台等。

施工要求

项目 ltem		无气喷涂 Airless Spraying
基面处理 Base Surface Preparation		清理钢结构表面的灰尘、油污、水渍、结露;确保已施防锈漆、底漆完整，无焊接缺陷或锈蚀;推荐底漆体系:环氧富锌底漆 + 环氧云铁中间漆;严禁直接在无防腐底漆或镀锌层表面施工。 Remove dust, oil stains, water traces, and condensation from the steel surface.Ensure the anti-rust primer and base coat are intac with no welding defects or corrosion.Recommended primer system: Epoxy zinc-rich primer + Epoxy mica iron intermediate primer.Application directly onto untreated anti-rust primer or galvanized layers is strictly prohibited.
施工工具 Tools Required		喷涂机、辊筒、美纹纸、搅拌器、防护口罩、防护服、安全绳、安全帽、防护鞋、护目镜、保护膜 Spray machine, roller, masking tape, mixer, protective mask, protective clothing, safety rope, safety helmet, safety shoes, goggles protective film
底层加固 Base Reinforcement		粘钉材料:401胶或EVA707胶+普通水泥(比例1:1):保温钉间距:上下左右 20~30cm，注意阴阳角部位粘结牢固:挂网:钢丝网根据构件形状裁剪;挂网与钢构件间距保持16~20mm;挂网后要压实，避免空鼓;此时不需整面挂，后续在不同厚度时再挂加强层。 Adhesive nalls: 401 glue or EVA707 glue + ordinary cement (ratio 1:1),.Nall spacing: 20-30cm vertically and horizontally; ensure firm bonding at corners.Mesh installation: Cut steel mesh to match component shape.Mesh spacing: laintain 16-20mm gap betweer mesh and steel member,Compaction: Press firmly after instalation to avoid hollowing,Note: Fullsurface coverage not reauired initiallv additionalreinforcement avers added as thickness increases
拉毛层施工 Textured Layer Application		配比:粉料:拉毛胶=2:1，加入适量水搅拌均匀;厚度:1~3mm;施工方式:喷涂为主;干燥要求:常温养护>24小时。 Mix ratio: Powder : Texturing compound = 2: 1, add appropriate water and mix evenly.Thickness: 1-3mm.Application method: Primarily spray coating.Drying requirement: Cure at room temperature >24 hours.
主涂层施工 Main Coating Application		配比:粉料:水=1:0.8~1.2(按现场调节);搅拌时间:15℃以上搅拌8~10分钟，低温适当延长;施工方式:抹涂:需压实不宜光滑，防止空鼓:喷涂:枪距0.5~0.6m，压力0.6~0.8MPa，匀速移动;单层厚度:6~8mm;层间时间:前层7~8成千后施工下一层;表面处理:略作粗糙，有助于层间粘结。 Mix ratio: Powder : Water = 1: 0.8-1.2 (adiust onsitel.Mixing time: 8-10 minutes above 15'c, extend appropriately at lower temperatures Application methods:-. Troweling: Compact firmly, avoid smooth finish, prevent hollowing.- Spraying: Nozzle distance 0.5-0.6m pressure 0.6-0,8MPa, move uniformly,Single layer thickness: 6-8mm.
中间加强挂网 Intermediate Reinforcement		当厚度达18mm:包惠一道钢丝网，搭接5~10cm，用保温钉或铅丝固定，并用抹刀压实。 When thickness reaches 18mm: Apply one layer of steel mesh with 5-10cm overlap, secure with insulation nails or lead wires, and compact with trowel.
细节处理 Detail Treatment		对裙座、顶部等部位施工时应做出30°~45°坡口:干燥后，坡口顶部需用室外型密封胶密封处理，防止水汽渗入。 For skirt supports, tops and other areas: Create 30"-45" slopes.After drying: Seal slope tops with outdoor sealant to prevent moisturpenetration.
养护 Curing		养护时间:防火涂料施工完成后需养护1个月。养护环境:温度要求在5-35℃之间，湿度小于80%，空气应适当流通，避免雨水侵蚀，避免高空气流速，避免暴晒和长时间日光直射。注意:养护期间应注意防水、防潮。 Curing time: 1 month after completion of fireproof coating application.Curing environment: Temperature 5-35°c, humidity <80% adeawate air circulation.Avoid: Bain erosion, high air velocity, direct sunlight and prolonged sun exposure.Note: Waterproof and moisture protection required dung curing period.
