气凝胶透明隔热涂料 HUALU Pyshield AC-JZ-03TM01
产品优势
1.微米级涂覆，超强隔热性(省电可达30%)
2.极致防护紫外&红外线(紫外&红外线阻隔率>99%)
3 卓越的耐候与稳定性
4.良好的光学透明性
产品参数
|
项目 ltem |
参数(玻璃用) Parameters(Glass) |
参数(木结构用) Parameters(Wood) |
|||
|
紫外线阻隔率(%) UV Blocking Rate(%) |
≥99.0 | ||||
|
红外线阻隔率(% )IR Blocking Rate (%) |
>99% | ||||
|
可见光穿透率(%) Visible Light Transmittance(%) |
10~75%(可定制) | ≥80.0 | |||
|
铅笔硬度 Pencil Hardness |
≥1H | ||||
|
耐油污能力 Stain Resistance |
水接触角≥100°二甲碘烷接触角≥70° Water contact angle >100DlM(Diiodomethane)contact angle ≥70° |
||||
|
阳燃等级 Flame Retardant Rating |
/ | UL94-V0 | |||
|
寿命(年) Service Life(years) |
>10 | ||||
|
气味 Odor |
干燥后无异味 Odorless after drying |
||||
|
光泽度 Gloss Level |
10-80(可依据客户需求) 10-80(customizable) |
||||
|
外观颜色 Appearance/Color |
透明海洋蓝 Transparent ocean blue |
无色透明 Colorless transparent |
|||
|
规格 Specification |
10 kg/20 L | 10 kg/20 L | |||
|
用量 Usage |
5-6 ㎡/kg | 5-10 ㎡/kg | |||

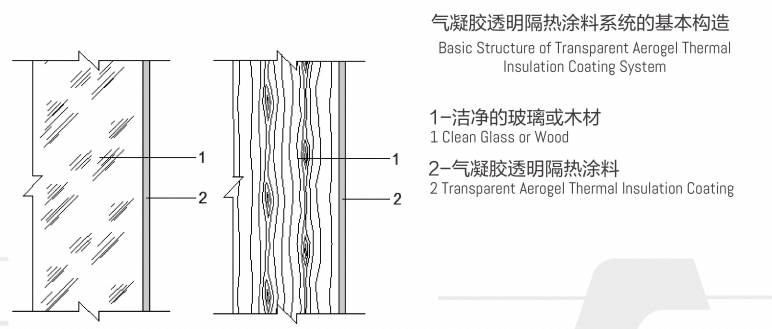

图层设计结构
|
项目 ltem |
参考厚度(mm) Reference Thickness(mm |
|||
| 气凝胶透明隔热涂料 Transparent Aerogel Thermal insulation Coating |
20~40μm | |||

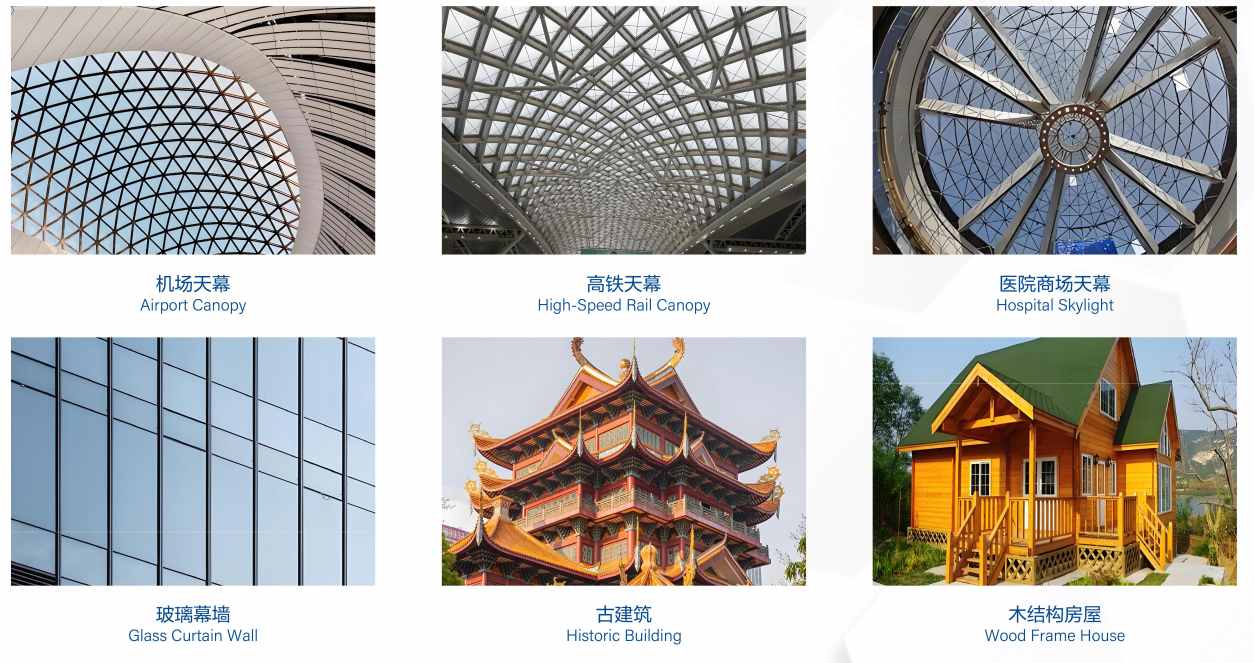

产品应用
气凝胶透明隔热涂料适用于机场天幕、高铁天幕、医院商场天幕、常规的玻璃幕墙结构、玻璃门窗以及玻璃连廊、古建筑、寺庙、木结构房屋等。
施工要求
|
项目 ltem |
喷涂 Spray Coating |
|||
| 基面要求 Surface Requirements |
涂层施工前，先将墙体表面的油污、灰尘、空鼓、开裂、脱落等异常情况，采用找平腻子填补(挂网)，基面平整、干燥，要求墙体含水率小于10%，pH值小于9。 Application, remove oil stains, dust, hollow areas, cracks, peeling, and other abnormalities from the wall surface. Level with putty(with mesh reinforcement if necessary). The surface must be flat, dry, with a moisture content below 10% and ph below 9. |
|||
|
施工工具 |
喷涂机、辊筒、美纹纸、搅拌器、防护口罩、防护服、安全绳、安全帽、防护鞋、护目镜、保护膜 Spray machine, roller, masking tape, mixer, protective mask, protective clothing, safety rope, safety helmet, safety shoes, goggles protective film |
|||
| 施工工艺 Mixing Instructions |
开桶搅拌:请先检查涂层原料有无明显分层现象，如有分层现象可用搅拌方式搅拌均匀，不可高速分散。搅拌时间应在3-5分钟，喷涂施工厚度单次不超过2 mm，间隔12小时后再重喷，具体厚度可商定。 Open the container and stir: First check for significant stratification in the coating material, f stratification is observed, mix uniforml by stirring-do not use high-speed dispersion, Stir for 3-5 minutes, The construction thickness should not exceed 2mm per application, and re-spraying should be performed after an interval of 12 hours. The specific thickness can be customized. |
|||
| 施工条件 Construction Conditions |
1.施工温度不低于5℃。 2.避免刮风下雨天气施工。 |
|||
